NAS/SAN Search 2014

It’s been a while since I looked at what’s new in the software/server based SAN/NAS world. Last time I looked was probably 2-3 years ago and I ended up with NexentaStor Community 3 as it was the most complete, stable and feature rich SAN OS at the time.

HP-ProLiant-DL180-G6-Server

Fast forward to 2014, there’s been tremendous developments in software based SAN systems, seems like days of Hardware RAID are numbered as pretty much every major SAN/NAS distro is pushing ZFS as the de-facto solution.

The goal here is to find a more up-to-date SAN so I can possibly replace NexentaStor in production assuming it offers more features or provides better performance.

Required Features:
* Email notification on disk failure
* Web UI managed
* High performance
* Stable
* NFS/CIFS(SMB)

Nice to have features:
* Embedded install (USB/CF)
* ZFS
* iSCSI (MPIO would be nice)
* Performance monitoring

Test Hardware:
HP SE316M1 (DL160) G6
1x Intel Xeon X5550
20GB DDR3 ECC RAM
6x 160GB 10K Velociraptors (to be replaced for prod)
1x OCZ Agility 60GB SSD (cache device, test use only)
Dual Intel NIC
LSI SAS2008-IT HBA (By Dell) or LSI 1068E-IR SAS HBA (whichever is supported)

On to the testing…

Hyper-V Is Shit

I’ve finally had it with Hyper-V. It’s got to be the most frustrating, broken virtualization implementation in the world. Every other VM implementation makes it as easy as possible to administer and manage the environment, Microsoft it seems tries their best to make it as hard as possible. Never mind the amount of work required to manage a Hyper-V that’s not on a domain, stuff like shared nothing migration is an absolute headache, ISO files on network share? good luck with that. Every little task requires pouring through documentation just to figure it out. The last one was a final straw. Tried installing Windows Server 2012 (not R2) on Hyper-V R2. Can’t get past serial # entry because Hyper-V doesn’t seem to know how to send keys to the virtual machine, after doing some Google searches the solution is to use the on-screen accessibility keyboard. Really? What. The. Fuck.

Until Microsoft gets their shit together, it’s back to VMWare and Proxmox for me.

And don’t even get me started on Microsoft forcing a touchscreen-based GUI on Server based products.

End Rant.

Baytech RPC3 Remote Power Controller

Thanks to another great find by members over at Serve The Home forums, I picked up a couple of Baytech RPC-3 remote PDUs for dirt cheap.
IMG_0833

Even though the Baytech Units are rated for 20Amps and come with a 20 amp plug, my home feed is only 15A so first order of business is to convert the 20 amp plug to a standard 15A one.
IMG_0835

I picked up a couple of heavy duty plugs at Home Depot and went to work.
IMG_0836

Simply cut off the existing plug and strip the individual wires
IMG_0837

Then simply attach the wires to the new plug (make sure you get the Hot/Neutral/Ground right)
IMG_0839

Reassemble the plug, all done.
IMG_0841

Once both units were rewired it was time to configure them. One of the switches didn’t come with an IP address sticker and I tried unsuccessfully to discover the IP address manually. It was becoming apparent that I’d have to configure the switch via serial connection.
IMG_0842

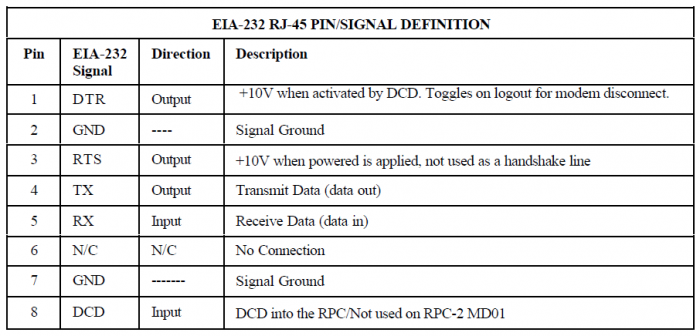

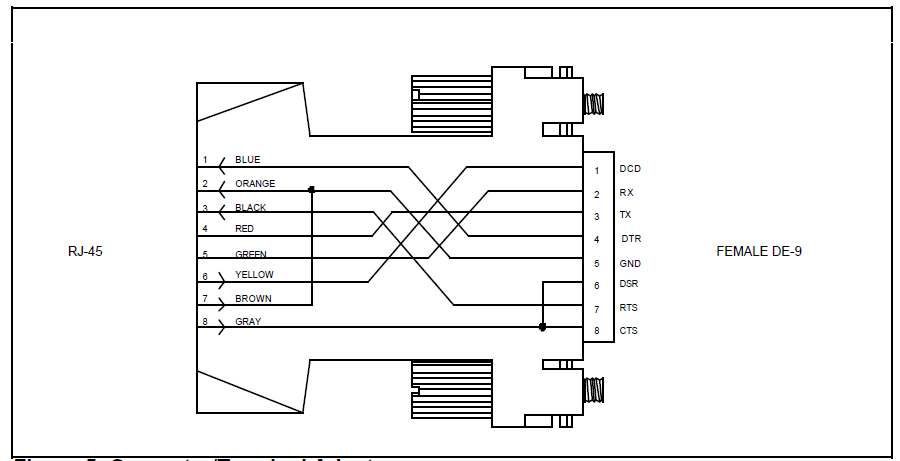

Unfortunately the baytech units use a non-standard DB9 to RJ-45 cable. Thankfully, Good Guy Baytech supplies the complete pinout in the manual so that you can make your own cable.
cable2
cable1cable3

Note: The diagram assumes that this cable will be used with a Null Modem (rollover cable) and is pinned out as such

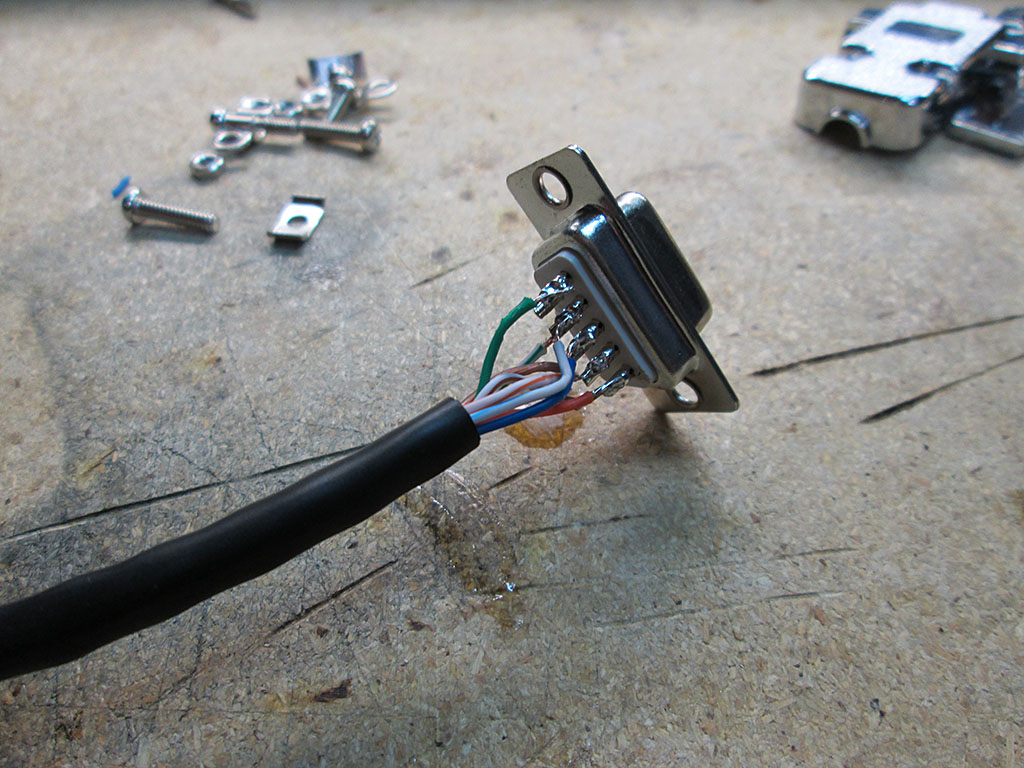

Making the cable is very straight forward. All that was needed was a short Cat-5e Patch cable, a female DB9 connector and some basic soldering skills. Simply cut the end of the patch cable, follow the pinout diagram and match up the wire colors in the opposite end of the cable to the proper DB9 pins. I ended up simply writing down the colors to pin matching so the soldering job went faster
IMG_0843
IMG_0844

Few minutes later I had a working Baytech cable.
IMG_0846
IMG_0845

Fortunately the console was not password protected so it was easy to change the admin password. If however the console was passworded here are the reset instructions for Baytech RPC3’s

1. Turn off the power to the RPC3
2. Remove the lid
3. Locate JP1 on the Ethernet board
4. The jumper is placed on pins 1 and 2, move it to 2 and 3
5. Turn power on for 10 seconds
6. Turn power off
7. Return jumper to its original position.
rpc3_reset

Once the IP address was configured via the serial console, the unit was ready for remote access
telnet
telnet_status

One last order of business before racking up the units was to provide a GUI driven interface for the unit. Since the RPC-3 uses basic command line telnet connection it was relatively easy to develop a basic app to control and monitor the unit remotely. Few hours of coding and I came up with a simple app that interfaces with the units.
BaytechControl
The app can control individual outlets by right clicking on it, or many at once by selecting the check boxes and invoking an action.

Link to App: http://www.copyerror.com/shared/BaytechControl.zip

Now it’s just a matter of racking it up and plugging everything in.
IMG_0858

The only complaint about these boxes is the master on-off button. I wish there would be some sort of cover over the switch as it’d be very easy to accidentally kill the entire pdu dropping all devices.

Manual: U140E125-05_rpc

Goodbye SugarSync

logo

In an effort to improve my security and privacy online I’ve finally dumped SugarSync for a self hosted solution.

I’ve spent a few months looking for an alternate solution to SugarySync, i’ve tried OwnCloud which turned out to be a real disaster and landed on Seafile.

While OwnCloud has a nicer GUI, it’s horribly buggy. The desktop sync client is slow and resource intensive. Plus I ran into an issue where two computers kept battling over same set of files (uploading/downloading back and forth) even though those files haven’t changed in years.

Seafile is for the lack of a better word, incredible. Very easy to configure, fast and comes with full mobile support. One of the coolest features is the ability to ignore files/directories by simply creating a seafile-ignore.txt file in the root of the library and adding whatever file masks to skip, a feature that SugarSync users have been asking for FOR YEARS. While not perfect (I’m running 3.0 Beta), it’s a pretty polished product and sufficiently stable to be used in production.

Incidentally configuring Seafile was also the first time i used Nginx as opposed to Apache. It’s going to be a while before I get comfortable with the configuration file format but so far I’m liking it.

I’m still looking for self-hosted alternatives for Evernote, LastPass and XMarks…the search continues.

RGB Fan Mod

Few months ago I used some RGB LED lighting in my room (eBay China special). The setup uses an IR remote control and a control box to control the lighting. Power is supplied via a high current 12V power supply (10A supply)
IMG_0804
IMG_0802

My “gaming” computer uses green LED fans which looks kind of odd when using any other color on the strip. Changing the color of the computer required swapping the fans for a different color.
IMG_0789
IMG_0788
IMG_0786

So, I decided to modify the fans to sync the colors of the fans with the rest of lighting. I already had tons of RGB LED’s, so it was really a matter of A LOT of soldering. One thing to note is that the LED ligthing system uses common Anode configuration, with a single 12V rail and 3 (RGB) grounds.
IMG_0746

Once I pulled the fans from the computer, I had to remove the old green LEDs from the fan.
IMG_0741

Fortunately the LEDs are simply pressed into place and not glued. This makes them easy to pop out with just a little bit of force.
IMG_0742

The leads for the fans are connected to a small circuit board underneath the sticker on the fan
IMG_0743
IMG_0744

A quick application of a soldering iron and all the LED leads have been removed. Since the LEDs are no longer supplied with fan voltage rail, the brightness of the LEDs will no longer be tied to the speed of the fans.
IMG_0745

The RGB leds a just tiny bit larger than the original LEDs so it took a bit of extra force to press them into the socket.
IMG_0748

I used standard ribbon cable to carry the RGB voltages across the LEDs in the fan. The individual current for each fan is very low so the ribbon cable can easily handle the load.
IMG_0749

All LEDs were connected via point-to-point connections. This was actually a fair bit of work. The ribbon cable is quite delicate so I had to take extra care when stripping the wire ends as not to cut the lead.
IMG_0752
IMG_0754

The ribbon cable is nice and flat so it doesn’t affect the overall diameter of the fan much. Still, there would be certain configuration where the fans are too close to an edge where this would be problematic. Fortunately in my case, the fans are spaced sufficiently apart that the ribbon cable doesn’t interfere.
IMG_0755

Once all the LEDs were electrically connected they had to be terminated via current limiting resistors. During bench testing I found that the 470ohm resistors provided the best brightness to current ratio at 12V. Since the LED receives power on a common Anode and each color draws slightly different amount of current, it’s important to place the resistors on the individual color leads. Putting the resistor on the anode pin will not work properly when using more than one color at a time.
IMG_0757

With the first fan completed I did some testing to see how the setup will stack up. I wasn’t sure if the RGB LEDs will be bright enough.
IMG_0764

At 12V the individual colors only draw about 30mA per fan.
IMG_0758
IMG_0763

With all the colors lit, the draw was just 90mA. Which works out to under 500mA for the whole computer. A negligible load on the control box for the ambient lighting.
IMG_0765
IMG_0760

To connect the fans to the LED strip I bought some JST 4 pin connectors. It’s surprisingly difficult to find small 4 pin connectors locally, so I had to do another China eBay order and wait another month for them to show up.
IMG_0776

To complete the connection, all the resistors were then wrapped via heatshrink and soldered to the connectors. I gave each fan about 8″ of wire to make the connections between the fans easy.
IMG_0778

To connect all the fans together and to connect them to the LED strip I braided few 24 gauge wires to make a nice flat cable. This cable will run outside of the computer via a hole (meant for water cooling hose) in the computer case.
IMG_0781
IMG_0782

Once all the fans were soldered up, I installed them back into the computer. My wire organization skills are certainly not the best, but then again this is just a Mini ATX case so not heck a lot of room to stash the cabling.
IMG_0791

Last step was to connect the supply cable to the LED strip and turn it all on.
IMG_0794
IMG_0795
IMG_0799

Here’s a short video of the LED system, with the light mode set to cycle all colors.

VOIP at Home

asterisk-bubble
As part of a side project I jumped into the “exciting” world of VOIP and Telephony. Of course, as soon as someone mentioned VOIP or PBX I think Asterisk. Now, I’ve heard of Asterisk for years, and I’ve always considered setting up a PBX at home but I could never figure out how I would utilize the features on a day to day basis. Now that that side project has come up, it was the perfect excuse.

First thing first, I jumped on Kijiji and picked up a set of Cisco 7960G phones.
IMG_0766

The phones were in decent condition and already have been preloaded with the SIP version of the firmware. They were however each running different version of the firmware so first step was to factory reset these phones and update to latest available SIP firmware.
To factory reset the phone.

* Plug in the phone
* Hold # key until message …
* Press the following key sequence 123456789*0#
* Press 2 to delete network config
* wait for the phone to reboot

Updating firmware is pretty trivial. Once a TFTP server has been configured, simply drop the updated firmware onto the TFTP server and point the phones at the IP address. These phones automatically check for updated firmware on the server during the bootup process.

If DHCP option for TFTP isn’t configured, an Alternate TFTP server can be configured on the phone via Network Configuration. Before attempting to change the setting the phone must be unlocked via option 9. The default password for the phones: cisco

When the phone boots up it checks the TFTP server for configuration files. The two most important files are SIPDefault.cnf and SIP<mac>.cnf. These are two of the files that the phone will look for during start up to self-configure.

The SIPDefault is a great place to put common settings for all phones.
Example Format for SIPDefault.cnf

image_version: P0S3-8-12-00
proxy1_address: "voip.olympia.local"            ; Can be dotted IP or FQDN
proxy2_address: ""              ; Can be dotted IP or FQDN
proxy3_address: ""              ; Can be dotted IP or FQDN
proxy4_address: ""              ; Can be dotted IP or FQDN
proxy5_address: ""              ; Can be dotted IP or FQDN
proxy6_address: ""              ; Can be dotted IP or FQDN
proxy_register: 1
messages_uri:   "*97"
phone_password: "cisco" ; Limited to 31 characters (Default - cisco)
sntp_mode: unicast
sntp_server: "pool.ntp.org"
time_zone: "EST" ; assuming you're in GMT
time_format_24hr: 0 ; to show the time in 24hour format
date_format: "D/M/Y"  ; format you would like the date in
dial_template: dialplan
autocomplete: 0
call_hold_ringback: 1
#nat_received_processing: 0
logo_url: "http://voip.olympia.local/cisco/logo.bmp"
services_url: "http://voip.olympia.local/cisco/services.php"
directory_url: "http://voip.olympia.local/cisco/directory.xml"

SIP<mac>.cnf (SIP<MAC>.cnf replaced with actual MAC address of the phone)

#office phone

image_version: P0S3-8-12-00

line1_name: 100
line1_authname: "100"
line1_shortname: "Ext 100" ; displayed on the phones softkey
line1_password: "secret" ; replace with a strong password
line1_displayname: "THC Inc 100"; the caller id

proxy1_port: 5060
proxy1_address: voip.olympia.local

# Line 2 Setup
line2_name: 1000
line2_authname: "1000"
line2_shortname: "Intercom"
line2_password: "secret"
line2_displayname: "Intercom";

phone_label: "THC Inc.  " ; add a space at the end, looks neater

#remote access to the phone
telnet_level: 2
phone_password: "cisco" ; Limited to 31 characters (Default - cisco)

# uncomment below to connect over the internet
#nat_enable: 1

#custom phone logo
#logo_url: "http://kermit/asterisk-tux.bmp"

user_info: none

Couple of great resources for Cisco config file:
http://wiki.siftah.com/Cisco_7960G_IP_Phone_on_Asterisk
http://www.jtech.net/ip_phone/cisco/7940_sip_config.aspx

There are two providers I’ve signed up with. VOIP.ms and CallCentric.com. Both provide support for SIP/IAX2 phones and have very low rates, which is great for someone who doesn’t use land lines all that often. Having two providers also adds failover for outgoing calls.

I’ve always known about Asterisk but I also found few derived projects like AsteriskNow (turn key distro) and Elastix which had a much more polished web GUI. There’s tons of articles on the web about configuring Asterisk/Elastix and it, in itself is pretty trivial. But there are quite a few gotchas, especially if the server is hosted and open to the internet. For this exercise I ended up with Elastix as it seemed more user friendly than AsteriskNow with the default FreePBX UI.

So, couple of items when configuring a web open Asterisk server.

* Make sure extension passwords are VERY strong.
Since the password is never entered manually (only in Asterisk config and TFTP file config). It can be made impossibly strong and long.

* Protect the server via fail2ban.
Fail2ban is a fantastic solution to brute force attacks. It simply scans the log file file for failed authorization attempts and then simply blocks the incoming connection at the firewall effectively shutting the remote address out. This makes brute-force attacks impractical since the attacker can only try 4-5 passwords / hour for every IP they have.

Elastix already comes with fail2ban pre-installed, just needs to be configured.

/etc/asterisk/logger.conf

[general]
dateformat=%F %T

messages => security

This will create a new log file /var/log/asterisk/message

Add the following to /etc/fail2ban/jail.conf

[asterisk-iptables]
# if more than 4 attempts are made within 6 hours, ban for 24 hours
enabled  = true
filter   = asterisk
action   = iptables-allports[name=ASTERISK, protocol=all]
              sendmail[name=ASTERISK, dest=email@domain.com, sender=fail2ban@yourdomain.com]
logpath  = /var/log/asterisk/messages
maxretry = 4
findtime = 21600
bantime = 86400

Create a new file /etc/fail2ban/filter.d./asterisk.conf

 Fail2Ban configuration file
# Author: Xavier Devlamynck

[INCLUDES]

# Read common prefixes. If any customizations available -- read them from
# common.local
before = common.conf

[Definition]

# Option:  failregex
# Notes.:  regex to match the password failures messages in the logfile.
# Values:  TEXT
#
#log_prefix= \[\]\s*(?:NOTICE|SECURITY)%(__pid_re)s:?(?:\[\S+\d*\])? \S+:\d*

failregex = SECURITY.* SecurityEvent="FailedACL".*RemoteAddress=".+?/.+?/<HOST>/.+?".*
            SECURITY.* SecurityEvent="InvalidAccountID".*RemoteAddress=".+?/.+?/<HOST>/.+?".*
            SECURITY.* SecurityEvent="ChallengeResponseFailed".*RemoteAddress=".+?/.+?/<HOST>/.+?".*
            SECURITY.* SecurityEvent="InvalidPassword".*RemoteAddress=".+?/.+?/<HOST>/.+?".*

# Option:  ignoreregex
# Notes.:  regex to ignore. If this regex matches, the line is ignored.
# Values:  TEXT
#
ignoreregex =

* Firewall issue (Extension UNREACHABLE)
There’s a potential issue when using extensions that connect to the host PBX via the internet. Specifically, shortly after the extension connects it’ll disconnect and Asterisk will report the extension as UNREACHABLE, even though the ping is less than 2000ms (default for qualify=yes).
Changing the value of qualify to higher numbers (i.e. qualify=6000) has no effect.

The problem is that by default Asterisk sends a keep alive command to the phones once every 60 seconds, a lot of firewalls will close the UDP socket within 60 seconds as part of cleanup. So, to combat this the fix is to change the default “qualifyfreq” on Asterisk to a value less than 60 seconds. I changed the value to 45 seconds and it seemed to fix the problem for me.
The file to modify is located at /etc/asterisk/sip_custom.conf.

Simply add the following lines to the file:

qualify=5000
qualifyfreq=45
keepalive=yes

This will ping all the connected devices every 45 seconds and it’ll wait 5 seconds for response before timing out.

Additionally, in pfSense go to: Firewall -> System -> Advanced -> Firewall/NAT -> Firewall Optimization Options and change the option to “Conservative”. This will increase the timeout for the UDP connections before pfSense considers the connection closed and removes the socket.

* Locking down Web Interface.
If you absolutely must have port 80/443 open to the web, it’s a good idea to move the default web site to a virtual hosted site as it’ll make it a bit harder for bots to discover the site since it can only be accessed via proper url.

* Cisco Phone Logo
The logo image on the 7960G phones can be customized. It is a simple 4 bit image with a size of 90×56 pixels. The phone will automatically rescale larger images but it won’t look very good. I found the best way to save a compatible image is to use MS Paint and save the image as 256 color bitmap. The 7960G will also attempt to dither the image to display different shades.
IMG_0775

* Intercom System / Paging
This turned out to be more a challenge than I originally thought. Cisco SIP firmware doesn’t officially support paging so a workaround is to configure a line with auto-answer capability and then create a paging group in Elastix. Even though the 7960G has auto_answer configuration option, this feature can not be enabled via the config file and has to be manually configured on each phone. Not a big deal when dealing with a dozen or so phones, definitely an issue when dealing with large deployments.

Minuteman RPM1601 Smart Power Switch

I did another border run recently to pick up some more eBay goodies.
IMG_0701

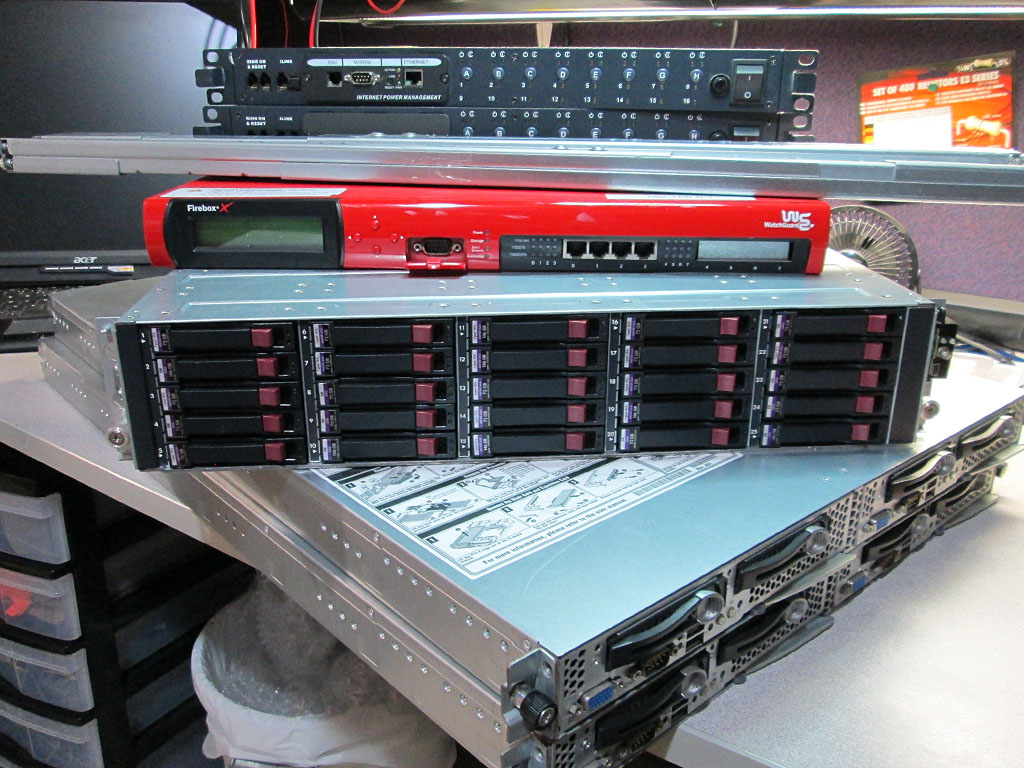

Over the last month or so I scored some incredible deals on server hardware. Picked up a couple of Intel SR1680MV Dual node servers, my favorite in 1U config right now. A really cheap HP Storageworks MSA70 with 25 Trays and some other items.
IMG_0702

Also picked up a pair of Minuteman Remote Power Management switches. These babies use to sell for over $800 a piece, I picked them up for about $20 each. Now granted these are most likely VERY old devices. I’ve never heard of Minuteman but for that price I was very much willing to give them a shot.
IMG_0706

Each switch can manage 8 power ports. Each port can be designated for remote operation (via HTTP, Telnet or SNMP) or local only.
IMG_0707
IMG_0711

The switches come with 8 power ports each rated for a total of 12A @ 120V. Unfortunately the switches do not report actual power draw at port or total. Each power port comes with it’s own RJ11 port that can be use to interface with a respective UPS or Computer, a feature I’ll most likely never use.
IMG_0709

The switches were both “supposed” to come with a management card but the seller screwed up and sent me only one. Since I already considered this a pretty good deal I didn’t want to send them back even though the seller offered a full refund.
IMG_0708

The lack of a second management module isn’t a big deal since these devices can be chained and managed from a single card, but more on that later.
IMG_0712

First order of business is to try to log into the thing. Unfortunately the devices came with no instructions or passwords of any kind. So, I connected the switch to my lab network and checked to see if by any chance the device is set for DHCP. No luck, DHCP lease list didn’t show any new devices on the network. A quick search for a manual on the Minuteman site and I came across SNMP based discovery snmp32_utility.
IMG_0710

Once again ran into a small issue as the software doesn’t seem to work under Windows 7 and up (network list is empty).
IMG_0720

Fortunately I have an old toughbook kicking around that has Windows XP 32 bit installed. A quick install and bingo! the device shows up. Attempting to access the device resulted in a password prompt. Once again I lucked out since the password was simply set to “admin” and it only took me 3 tries to figure it out.
IMG_0721

I cleared the password and set the device for DHCP.
IMG_0722

Once web access got enabled I fired up my browser and pointed it at the device IP. Crap! Another password prompt. This time no amount of defaults was able to bypass this login screen.
login

Fortunately, through a lot of web searching I found a procedure to factory reset the management card which clears any passwords on it. The process is as follows

* Remove the screws holding the management card in place
* Using a small tool press the "Reset" button on the management card and hold
* While holding the reset button pull the management card out of the switch unit
* Continue holding the reset button, wait a few second then re-insert the card to power it up.
* Continue holding the reset button for another 40 seconds and release.
The management card has been fully reset.

Once the card resets, reconfigure the card for DHCP again and use blank login/password on the site credentials and *boom* we’re in.
web
web2

Now that we have access to the card, time to figure out how to chain the two. Based on the manual for the device. The switch comes with an “iLink” cable and a terminator plug. I received no cable and only one plug.

I picked up a 6 lane RJ11 cable and plugged it into the boxes as described by the manual. However, no matter how I placed the cable and the one terminator plug, the device would never see the second box.
IMG_0717
IMG_0718

My first assumption was that I need a second terminator plug to close the loop. Since I only had one I decided to figure out how it works and build another one. I was pretty sure that due to the small size of the plug only passive circuitry is used inside. A quick run-through with a multi meter confirmed my theory and I determined the internal connections in the plug.
IMG_0715

The pins on the terminator plug are simply connected via 1K and 5K resistors.
circuit

All I had to do was build a similar plug. I quickly whipped up a ghetto plug for testing and confirmed that it works since the master switch behaves slightly differently with it plugged in.
IMG_0725

Once again ran into a roadblock. The addition of the second terminator did not result in connectivity between the two switches. Upon closer inspection of the cable I realized that the wires in the cable are not straight-through but rather reversed.
IMG_0717

I snipped the cable, reversed the wires and put another RJ11 plug on it and EUREKA! Both switches are accessible via the management interface. It also turns out that the terminators seem to be unnecessary in this configuration as the switches had no problem operating with the terminators removed.
IMG_0726
IMG_0723

I will probably toss these into one of my data centers where I’ll be able to reboot machines without having to drive for over an hour.

Files for this product:
snmp32_utility
SNMP-32-SL_manual
RPM_manual

iPXE on Dell C6100 (BIOS Mod)

My step by step instructions on modifying the Dell PowerEdge C6100 BIOS firmware to replace the stock Intel iSCSI/PXE bootloader with the much more versatile iPXE firmware. Some of iPXE features include boot from ATA over Ethernet, FCoE, Infiniband network, HTTP web server and of course iSCSI. It supports an advanced scripting environment that can alter the boot process by simply uplading a new script file to a web server or TFTP server among others. A huge improvement over the standard Intel PXE loader.

This is a non-standard, risky procedure because we’re modifying embedded network interfaces and not add-on cards. The goal is to have the Dell C6100 as a completely diskless system with the ability to boot from various sources over the network without having to be physically at the server.

ipxe2

First the usual disclaimer: I hold no responsibility if you hose your motherboard doing this. Anything in this article is very far from “supported operation”. Just because it worked for me, doesn’t guarantee that it’ll work for you.

With that out of the way…

The ROM that I’ll be building will be capable of chain loading a dynamic PXE/iSCSI script from a TFTP server. script file will be unique to each server as the script filename will be based on the MAC address of the iPXE interface.

If you want to skip building the whole thing yourself, you can just download the ROM file. All files referenced in this doc are at the end of this post.

Prerequisites:

  • Flash BIOS to the latest version. 1.7 in my case.
  • Enable Option ROM in BIOS for the Network cards
  • Linux machine with gcc/make environment to build our iPXE ROM
  • Windows machine to modify the stock C6100 BIOS and inject the iPXE firmware
  • Bootable USB stick to flash the firmware

In order to build the proper ROM firmware we need to identify the specific Vendor ID and Device ID. To do this simply boot a Linux Live CD on the C6100 and issue the “lspci” command to show all devices

[root@localhost ~]# lspci
00:00.0 Host bridge: Intel Corporation 5500 I/O Hub to ESI Port (rev 22)
00:01.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 1 (rev 22)
00:03.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 3 (rev 22)
00:07.0 PCI bridge: Intel Corporation 5520/5500/X58 I/O Hub PCI Express Root Port 7 (rev 22)
00:13.0 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub I/OxAPIC Interrupt Controller (rev 22)
00:14.0 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub System Management Registers (rev 22)
00:14.1 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers (rev 22)
00:14.2 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub Control Status and RAS Registers (rev 22)
00:14.3 PIC: Intel Corporation 7500/5520/5500/X58 I/O Hub Throttle Registers (rev 22)
00:16.0 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.1 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.2 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.3 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.4 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.5 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.6 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:16.7 System peripheral: Intel Corporation 5520/5500/X58 Chipset QuickData Technology Device (rev 22)
00:1d.0 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #1
00:1d.1 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #2
00:1d.2 USB controller: Intel Corporation 82801JI (ICH10 Family) USB UHCI Controller #3
00:1d.7 USB controller: Intel Corporation 82801JI (ICH10 Family) USB2 EHCI Controller #1
00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 90)
00:1f.0 ISA bridge: Intel Corporation 82801JIR (ICH10R) LPC Interface Controller
00:1f.2 SATA controller: Intel Corporation 82801JI (ICH10 Family) SATA AHCI Controller
00:1f.3 SMBus: Intel Corporation 82801JI (ICH10 Family) SMBus Controller
01:00.0 Ethernet controller: Intel Corporation 82576 Gigabit Network Connection (rev 01)
01:00.1 Ethernet controller: Intel Corporation 82576 Gigabit Network Connection (rev 01)
05:04.0 VGA compatible controller: ASPEED Technology, Inc. ASPEED Graphics Family (rev 10)

We can see the Ethernet controll is at address 01:00.0. Let’s get some details

[root@localhost ~] lspci -n -s 01:00.0
01:00.0 0200: 8086:10c9 (rev 01)

We have our Vendor and Device ID’s. We combine the two to get our ROM filename, but that will come later.

Now it’s time to set up a build environment. Assuming all the compiler tools are installed on our linux machine, we download the source from the Git repository.

[root@localhost ~] cd /tmp
[root@localhost ~] git clone git://git.ipxe.org/ipxe.git
[root@localhost ~] cd ipxe/src

Upgrading Dell C6100 BIOS

These are my step-by-step instructions how to safely upgrade the Dell PowerEdge C6100 without bricking the nodes.

Couple of points:

  • If your service tag is not on Dell Site, you can not upgrade. Forcing the flash will likely brick your node.
  • Always upgrade the BMC first.
  • BMC must be upgraded on ALL nodes in the chassis
  • These instructions worked for me. I can not be responsible if they do not work for you
  • A lof of steps here might seem unnecessary, please follow anyways
  • There seems to be no difference when a chassis is hosting nodes with mixed BIOS/BMC versions.
  • When flashing a node, the powered state of other nodes doesn’t matter. Can even be removed.

Using the following method, I’ve successfully upgraded the following firmwares:

BMC 1.11 -> 1.32
BMC 1.22 -> 1.32
BMC 1.29 -> 1.32

BIOS 1.44 -> 1.70
BIOS 1.62 -> 1.70
BIOS 1.69 -> 1.70

FCB 1.08 -> 1.20
FCB 1.14 -> 1.20

First thing is first. Need to download the appropriate firmware files from the Dell Support Site here. To find your firmware files, enter your Service Tag number found on the back of the server. If the sticker is missing you can try the BIOS but be warned that not all nodes might be from the same chassis.
c6100bios1

If the DELL site comes up with “Invalid Service Tag” message, STOP RIGHT HERE. Your server is a custom build and it does not support the C6100 firmware from the site. Proceeding will most likely end up in bricking your nodes.

Once the drivers and files show up on the site, download the BIOS, BMC and FCB files.
c6100bios2

Run each downloaded EXE file and extract the files contents to your local drive.
c6100bios3
c6100bios4

Once all files have been extracted. Copy the three folders to a bootable DOS USB stick. There are many ways of making a DOS bootable USB Stick. Use the stick to boot into a DOS prompt.

We’re first going to flash the BMC. This is important because an older BMC might have trouble communicating with a new BIOS, but a new BMC will always support an older BIOS.
To flash the BMC, we’re using the SOCFLASH utility. Flashing is easy. Simply navigate to the SOCFLASH\DOS folder and execute flash8.bat.
IMG_0648

The rest of the BMC flash process is completely automated.
IMG_0650

Once the BMC has been flashed, power cycle the chassis. This means, unplug the server, wait a few seconds and plug it back in. This ensures a complete reset of the BMC. Power up the node and watch closely for POST messages.

If you see an “Error: BMC NOT Responding” message. REBOOT THE NODE.
IMG_0651

A simple soft reboot is enough to re-establish communication with the BMC.
IMG_0643

Once back in the dos prompt. Navigate to the folder where the C6100 BIOS files are located. At this point attempting to flash using the automated FBIOS.bat file will most likely generate a message “Different ROM ID between current system and update BIOS rom file”. This is expected.
IMG_0641

To properly flash the BIOS enter the following command at the prompt

>afudos 6100v170.rom /p /b /n /c /x

Naturally, replace the .rom filename with whatever the current firmware version is. The /X parameter skips the ROM ID check and forces the flash process.
IMG_0644

Once the flash process finishes, reboot the Node (a soft boot will suffice). During the boot process, the F2 (BIOS Entry) option is not displayed. Not sure why that is. Once the boot process finishes, reboot the node one more time to re-enter the BIOS settings.
IMG_0646

Once the BIOS settings are configured. Simply save and exit. At this point the flash process for the node is done and the next node can be flashed. For every remaining node flash both the BMC and BIOS.

Once all the nodes are flash, it might be a good idea to flash the Fan Controller Board. Some earlier firmwares (prior to 1.14) run the fans at much higher speeds than necessary making the server much noisier than it should be. If running the server in a data center this is typically not a problem but definitely makes a difference when running at home. Flashing the Fan Controller is very easy. Simply navigate to the folder on the USB stick where the FCB files are located and run FCB.bat. A quick note. The firmware is only compatible with the PIC-18 controller board. If your server came with the PIC-16 board, you’re out of luck. The firmware can not be flashed and the only way to slow down the fans is either via upgrading the FCB or by swapping the fans for something slower/quieter.
The FCB needs to be only flashed once per chassis. That means once the FCB has been flashed on a single node, the other nodes will see the upgraded firmware.
IMG_0659

And that’s it. The C6100 is now running on latest firmware.
